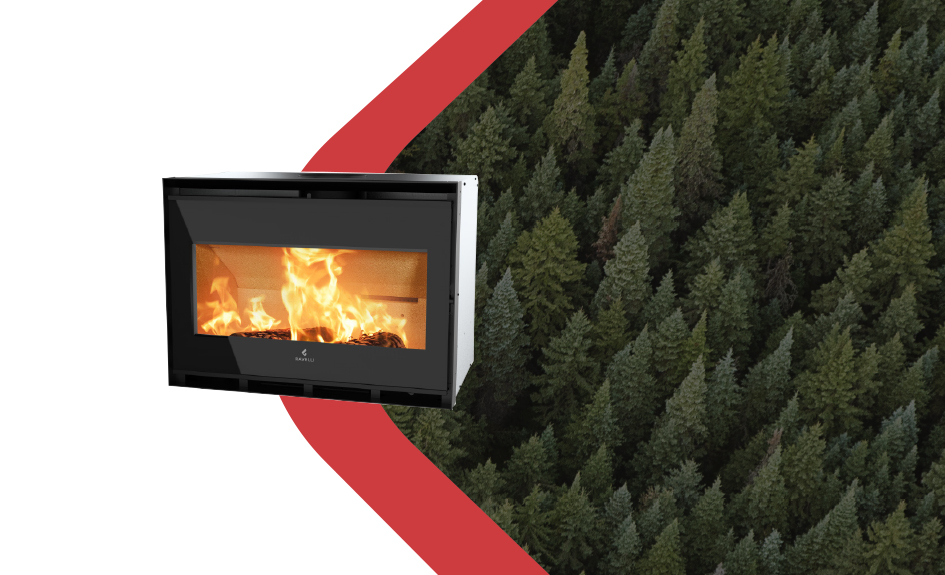

Atlas

Wood insert
  • Air
    Convection
    Flow
  • Thermal power: 12,4 kW
  • Heats up to: 350 m3 (about 130 m2 )
Coating and colour:
Black
Find dealer

Technical specifications

Nominal power (kW) 12,4
Heat input power (kW) 14,3
Net weight (Kg) 130
Pellet fuel consumption per hour min/max (Kg/h) 3,28
Efficiency (min/max) 86,9
Flue exit pipe (ø mm) 180 (Upper)
Energy class A+
Measures and data are indicative. The parent company reserves the right to make changes to its products at any time, without notice, for either technical or commercial reasons.

Technologies

  • Ash Tray

    Comfortable and easy removable drawer to collect the ashes burnt.

  • Clear

    An additional air channel, creates an air cushion between the flame and the glass -ceramic, guaranteeing its sharpness for several operating hours.

  • Smart Combustion

    Hermetic combustion prevents the escape of fumes and increases efficiency.

  • Clean Combustion

    In clean combustion we have two advantages: the closed combustion chamber which guarantees a high quality of the fumes, both inlet and outlet and the cleaning of the glass.

Description

5-star Wood Insert – Linear and Clean Design – Wide View of the Flame – Optional Ducting Kit – Optional Front Ventilation Kit

Certifications

This product meets the criteria for eco-compatible design and complies with the energy efficiency and particulate emissions requirements established by the European Ecodesign 2022 Regulation for domestic biomass appliances.
